| Technical Data | RHT-10K-40 | RHT-12K-40 | RHT-15K-40 | RHT-20K-40 |
PV Input | ||||
| Recommended maximum input power | 15.0 kW | 18.0 kW | 22.5 kW | 30.0 kW |
| Start-up voltage | 135 V | |||
| Maximum DC input voltage | 1000 V | |||
| Rated DC input voltage | 620 V | |||
| MPPT voltage range | 200~950 V | |||
| Number of MPP trackers | 2 | |||
| Number of DC inputs per MPPT | 2/2 | |||
| Maximum input current | 30/30 | |||
| Maximum short-circuit current | 40/40 | |||
Battery Side | ||||
| Battery type | Lithium Battery (with BMS) | |||
| Battery voltage range | 135~750 V | |||
| Maximum charging/discharge current | 40/40 A | |||
Grid Side | ||||
| Rated output power | 10.0 kW | 12.0 kW | 15.0 kW | 20.0 kW |
| Maximum output apparent power | 11.0 kVA | 13.2 kVA | 16.5 kVA | 22.0 kVA |
| Maximum input apparent power | 20.0 kVA | 24.0 kVA | 30.0 kVA | 30.0 kVA |
| Maximum charging power of battery | 10.0 kW | 12.0 kW | 15.0 kW | 20.0 kW |
| Rated AC voltage | 3L/N/PE; 220/380V;230/400V;240/415V | |||
| Rated AC frequency | 50/60 Hz | |||
| Maximum output current | 16.5 A | 20.0 A | 25.0 A | 33.5 A |
| Power factor | 0.8 leading … 0.8 lagging | |||
| Maximum total harmonic distortion | <3% @Rated output power | |||
| DCI | <0.5%In | |||
Back-up Side | ||||
| Rated output power | 10.0 kW | 12.0 kW | 15.0 kW | 20.0 kW |
| Maximum output apparent power | 11.0 kVA | 13.2 kVA | 16.5 kVA | 22.0 kVA |
| Maximum output current | 16.5 A | 20.0 A | 25.0 A | 33.5 A |
| UPS switching time | <10 ms | |||
| Rated output voltage | 3L/N/PE; 220/380V;230/400V;240/415V | |||
| Rated output frequency | 50/60 Hz | |||
| Voltage harmonic distortion | <3% @Linear load | |||
Efficiency | ||||
| Maximum efficiency | 98.4% | |||
| European efficiency | 97.5% | |||
General Data | ||||
| Protection | DC reverse polarity protection; Battery input reverse connection protection; Insulation resistance protection; Surge protection; Over-temperature protection; Residual current protection; Islanding protection; AC over-voltage protection; Overload protection; AC short-circuit protection | |||
| Over voltage category | PV: II Main: III | |||
| Ingress protection | IP65 | |||
| Standby self-consumption | <15 W | |||
| Topology | Transformerless | |||
| Operating temperature range | -30~60°C | |||
| Relative humidity | 0~100% | |||
| Maximum working altitude | 3000 m (>3000 m derating) | |||
| Cooling concept | Smart fan | |||
| Noise level | <40 dB | |||
| Display | OLED & LED | |||
| Communication | CAN, RS485, WiFi/LAN (Optional) | |||
| Dimensions (WxDxH) | 534x210x418 mm | |||
| Weight | 28 kg | 31 kg | ||

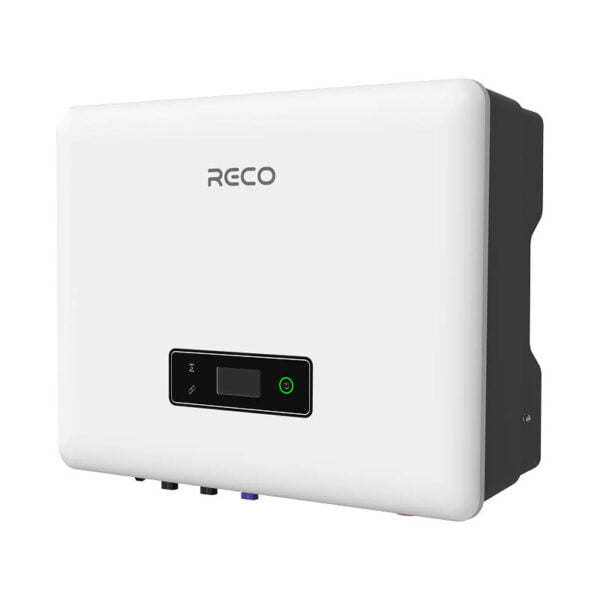

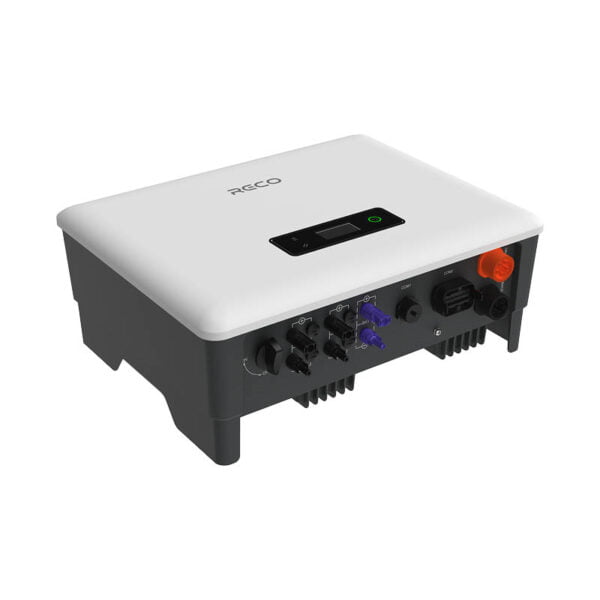

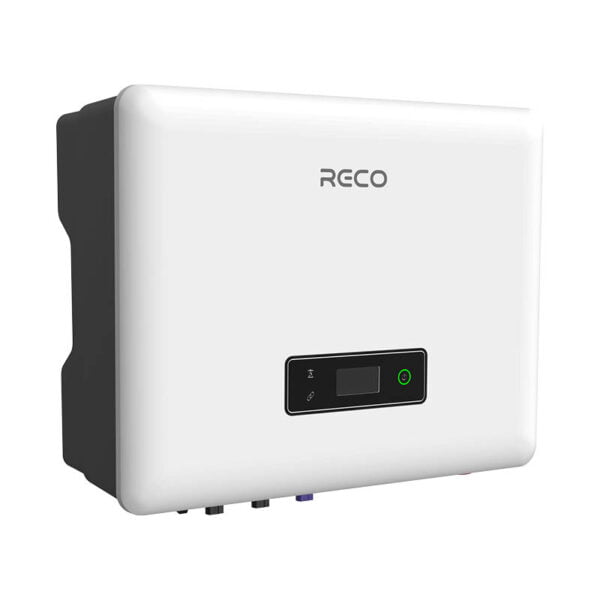

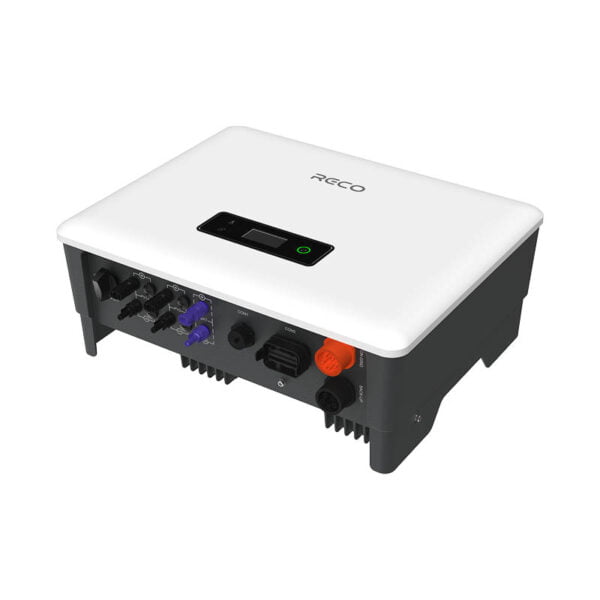

Three-phase Hybrid Inverter (10kW / 12kW / 15kW / 20kW)
- Optimal power and storage
- Strong load and back-up
- Convenient installation and operation
- Flexible design and use
Product Highlights
Optimal power and storage
- 98.4% maximum efficiency
- 30A PV input current, 2 MPP trackers
- 110% unbalanced output
- 40A charge/discharge current
Strong load and back-up
- 110% continuous AC output overloading
- 200% maximum back-up output overloading @60s
- 10ms UPS-level switching
- 150% DC oversizing
Convenient installation and operation

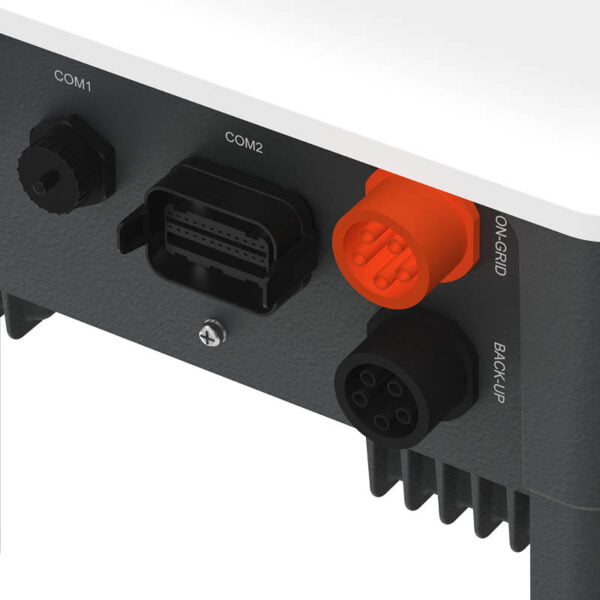

- Plug & play terminals for easy wiring

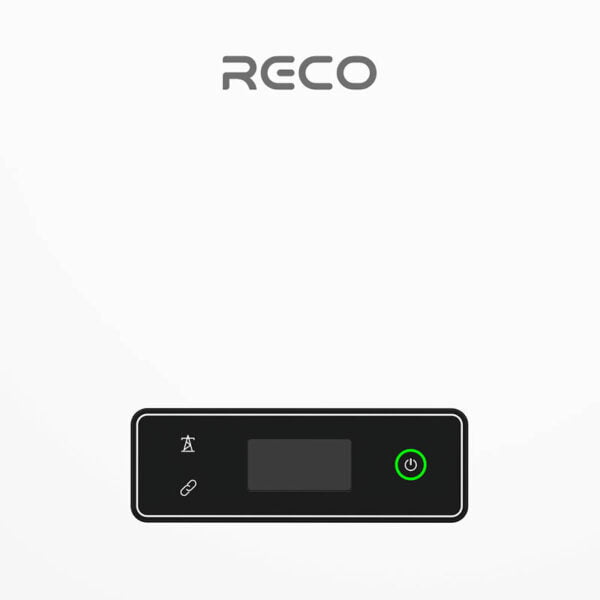

- I-light, power and alarm indicator
- OLED display and app for setting and data management
- WiFi configuration via app
Flexible design and use
- 135~750V wide battery voltage range
- IP65 for indoor and outdoor installation
- Support paralleling up to 10 devices
- Compact size and elegant appearance
